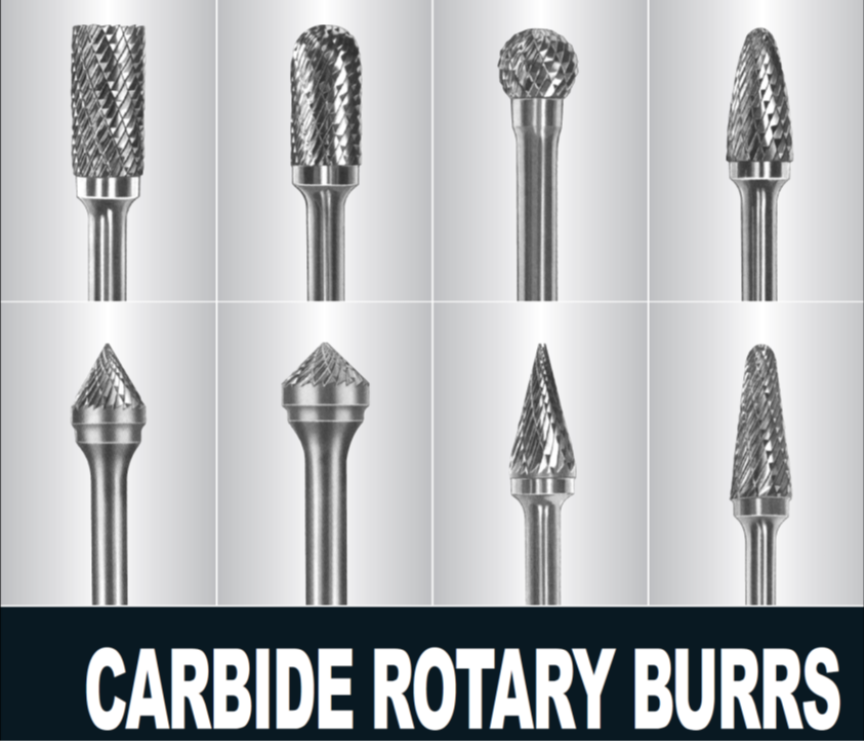

• Dùng để lấy ba via sau khi gia công, có thể dung bằng tay hoặc trên máy CNC
• Vật liệu dao HSS-E hoặc hợp kim
Sản phẩm liên quan
New
Dao phay trước nhiệt luyện 4G
• Đường kính từ ɸ0.03-ɸ25 mm
• Dao hợp kim cỡ hạt nano, chịu mài mòn tốt
• Độ bóng bề mặt cao
• Gia công vật liệu thép trước nhiệt luyện độ cứng đến HRc55
• Dùng gia công thô, bán tinh đến tính
• Có thể gia công được cho gang
EDP.NO. YOUR CODE NO, DESCRIPTION DIMENSION
GM99926569 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(0.5˚)
GM99926570 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(0.5˚)
GM99926571 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(1˚)
GM99926572 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(1˚)
GM99926573 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(1.5˚)
GM99926574 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(1.5˚)
GM99926575 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(2˚)
GM99926576 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(2˚)
GM99926577 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.5X4X4X45(3˚)
GM99926578 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.6X4X4X45(3˚)
GM99926579 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 0.8X4X6X45(3˚)
GM99926598 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 1X4X8X50(15˚)
GM99926599 4G MILL 2FL 30deg. Helix Special Taper E/M(TiAlN) 1.5X5X10X50(15˚)
GM99926603 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(0.5˚)
GM99926604 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(1.5˚)
GM99926605 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X20X65(2˚)
GM99926606 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X6X19X65(3˚)
GM99926607 4G MILL 4FL 30deg. Helix Special Taper E/M(TiAlN) 6X8X22X75(5˚)
SEM84500101E 4G MILL 2FL 30deg. Helix Rib E/M 0.1X4X0.15(1)X40
SEM845002015E 4G MILL 2FL 30deg. Helix Rib E/M 0.2X4X0.3(1.5)X40
SEM84500202E 4G MILL 2FL 30deg. Helix Rib E/M 0.2X4X0.3(2)X40
SEM845003015E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(1.5)X40
SEM84500301E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(1)X40
SEM84500303E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(3)X40
SEM84500305E 4G MILL 2FL 30deg. Helix Rib E/M 0.3X4X0.5(5)X40
SEM845004025E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(2.5)X40
SEM84500402E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(2)X40
SEM84500404E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(4)X40
SEM84500405E 4G MILL 2FL 30deg. Helix Rib E/M 0.4X4X0.6(5)X40
SEM845005025E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(2.5)X45
SEM84500502E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(2)X45
SEM84500503 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(3)X45
SEM84500504E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(4)X45
SEM84500505E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(5)X45
SEM84500506E 4G MILL 2FL 30deg. Helix Rib E/M 0.5X4X0.7(6)X45
SEM84500602E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(2)X45
SEM84500603E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(3)X45
SEM84500604E 0 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(4)X45
SEM84500605E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(5)X45
SEM84500606E 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(6)X45
SEM84500608E 0 4G MILL 2FL 30deg. Helix Rib E/M 0.6X4X0.9(8)X45
SEM84500704E 4G MILL 2FL 30deg. Helix Rib E/M 0.7X4X1.2(4)X45
SEM84500803E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(3)X45
SEM84500804E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(4)X45
SEM84500806 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(6)X45
SEM84500806E 4G MILL 2FL 30deg. Helix Rib E/M 0.8X4X1.2(6)X45
SEM84501002E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(2)X50
SEM84501003E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(3)X50
SEM84501004E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(4)X50
SEM84501006E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(6)X50
SEM84501007E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(7)X50
SEM84501008E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(8)X50
SEM84501010E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(10)X50
SEM84501016E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(16)X50
SEM84501020E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(20)X50
SEM84501030E 4G MILL 2FL 30deg. Helix Rib E/M 1X4X1.5(30)X70
SEM84501504E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(4)X50
SEM84501506E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(6)X50
SEM84501507E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(7)X50
SEM84501508E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(8)X50
SEM84501510E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(10)X50
SEM84501512E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(12)X50
SEM84501514E 4G MILL 2FL 30deg. Helix Rib E/M 1.5X4X2.3(14)X50
SEM84502006E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(6)X50
SEM84502008E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(8)X50
SEM84502010E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(10)X50
SEM84502012E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(12)X50
SEM84502016E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(16)X50
SEM84502020E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(20)X50
SEM84502026E 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(26)X60
SEM84502045E 0 4G MILL 2FL 30deg. Helix Rib E/M 2X4X3(45)X90
SEM84503010 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEM84503010E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEM84503012E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(12)X50
SEM84503016E 0 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(16)X60
SEM84503020E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(20)X60
SEM84503026E 4G MILL 2FL 30deg. Helix Rib E/M 3X6X4.5(26)X65
SEM84504016E 0 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(16)X60
SEM84504020E 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(20)X60
SEM84504026E 0 4G MILL 2FL 30deg. Helix Rib E/M 4X6X6(26)X65
SEM84600201E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.2X4X0.2(1)X40
SEM846003015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.3X4X0.3(1.5)X40
SEM84600302E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.3X4X0.3(2)X40
SEM846004015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.4X4X0.4(1.5)X40
SEM84600402E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.4X4X0.4(2)X40
SEM846005015E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(1.5)X45
SEM84600503E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(3)X45
SEM84600504E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(4)X45
SEM84600506E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.5X4X0.5(6)X45
SEM84600602E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(2)X45
SEM84600603E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(3)X45
SEM84600604E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(4)X45
SEM84600608E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.6X4X0.6(8)X45
SEM84600802E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(2)X45
SEM84600803E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(3)X45
SEM84600804E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(4)X45
SEM84600806E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(6)X45
SEM84600808E 4G MILL 2FL 30deg. Helix Rib Ball E/M 0.8X4X0.8(8)X45
SEM846010036SE 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X6X1(3)X50
SEM84601004E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(4)X50
SEM84601006E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(6)X50
SEM84601008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(8)X50
SEM84601010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(10)X50
SEM84601016 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(16)X50
SEM84601020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1X4X1(20)X50
SEM84601206E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.2X4X1.2(6)X50
SEM84601506E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(6)X50
SEM84601508E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(8)X50
SEM84601510 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(10)X50
SEM84601510E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(10)X50
SEM84601516E 4G MILL 2FL 30deg. Helix Rib Ball E/M 1.5X4X1.5(16)X50
SEM846020046SE 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X6X2(4)X50
SEM84602006E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(6)X50
SEM84602008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(8)X50
SEM84602010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(10)X50
SEM84602012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(12)X50
SEM84602014E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(14)X50
SEM84602016 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(16)X50
SEM84602016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(16)X50
SEM84602020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(20)X50
SEM84602045E 4G MILL 2FL 30deg. Helix Rib Ball E/M 2X4X2(45)X90
SEM84603008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(8)X50
SEM84603010E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(10)X50
SEM84603012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(12)X50
SEM84603016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(16)X60
SEM84603020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(20)X60
SEM84603022E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(22)X65
SEM84603030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(30)X70
SEM84603035E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(35)X70
SEM84603060E 4G MILL 2FL 30deg. Helix Rib Ball E/M 3X6X3(60)X100
SEM84604008E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(8)X50
SEM84604012E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(12)X50
SEM84604016E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(16)X60
SEM84604020E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(20)X60
SEM84604026E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(26)X65
SEM84604030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(30)X70
SEM84604040E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(40)X80
SEM84604060E 4G MILL 2FL 30deg. Helix Rib Ball E/M 4X6X4(60)X100
SEM84606020090E 4G MILL 2FL 30deg. Helix Rib Ball E/M 6X6X12(20)X90
SEM84606030E 4G MILL 2FL 30deg. Helix Rib Ball E/M 6X6X8(30)X60
SEM84608025100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 8X8X14(25)X100
SEM84608035100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 8X8X14(35)X100
SEM84610030100E 4G MILL 2FL 30deg. Helix Rib Ball E/M 10X10X18(30)X100
SEM84612032110E 4G MILL 2FL 30deg. Helix Rib Ball E/M 12X12X22(32)X110
SEMD98002E 4G MILL 2FL 30deg. Helix Ball E/M 0.2X4X0.4X40
SEMD98003E 4G MILL 2FL 30deg. Helix Ball E/M 0.3X4X0.6X40
SEMD98004E 4G MILL 2FL 30deg. Helix Ball E/M 0.4X4X0.8X40
SEMD98005E 4G MILL 2FL 30deg. Helix Ball E/M 0.5X4X1X40
SEMD98006E 4G MILL 2FL 30deg. Helix Ball E/M 0.6X4X1.2X40
SEMD98008E 4G MILL 2FL 30deg. Helix Ball E/M 0.8X4X1.6X40
SEMD980104SE 4G MILL 2FL 30deg. Helix Ball E/M 1X4X2.5X50
SEMD98010E 4G MILL 2FL 30deg. Helix Ball E/M 1X6X2.5X50
SEMD980154SE 4G MILL 2FL 30deg. Helix Ball E/M 1.5X4X4X50
SEMD98015E 4G MILL 2FL 30deg. Helix Ball E/M 1.5X6X4X50
SEMD980204SE 4G MILL 2FL 30deg. Helix Ball E/M 2X4X5X50
SEMD98020E 4G MILL 2FL 30deg. Helix Ball E/M 2X6X5X50
SEMD98030040E 4G MILL 2FL 30deg. Helix Ball E/M 3X6X4.5X40
SEMD98030100E 4G Mill 2FL 30deg. Helix Ball E/M 3x6x6x100
SEMD98030E 4G MILL 2FL 30deg. Helix Ball E/M 3X6X6X60
SEMD98040050E 4G MILL 2FL 30deg. Helix Ball E/M 4X6X6X50
SEMD98040100E 4G Mill 2FL 30deg. Helix Ball E/M 4x6x8x100
SEMD98040E 4G MILL 2FL 30deg. Helix Ball E/M 4X6X8X70
SEMD98050E 4G MILL 2FL 30deg. Helix Ball E/M 5X6X10X80
SEMD98060050E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X9X50
SEMD98060110E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X12X110
SEMD98060E 4G MILL 2FL 30deg. Helix Ball E/M 6X6X12X90
SEMD98080050E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X12X50
SEMD98080130E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X130
SEMD98080150E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X150
SEMD98080E 4G MILL 2FL 30deg. Helix Ball E/M 8X8X14X100
SEMD98100060E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X15X60
SEMD98100130E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X18X130
SEMD98100E 4G MILL 2FL 30deg. Helix Ball E/M 10X10X18X100
SEMD98120080E 4G MILL 2FL 30deg. Helix Ball E/M 12X12X18X80
SEMD98120E 4G MILL 2FL 30deg. Helix Ball E/M 12X12X22X110
SEMD9902005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 2(R0.5)X6X6X50
SEMD9902505E 4G MILL 2FL 30deg. Helix Corner Radius E/M 2.5(R0.5)X6X7X60
SEMD9903003E 4G MILL 2FL 30deg. Helix Corner Radius E/M 3(R0.3)X6X8X60
SEMD99040054SE 4G MILL 2FL 30deg. Helix Corner Radius E/M 4(R0.5)X4X10X70
SEMD9904005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 4(R0.5)X6X10X70
SEMD9906005060E 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R0.5)X6X15X60
SEMD9906005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R0.5)X6X15X90
SEMD9906010E 0 4G MILL 2FL 30deg. Helix Corner Radius E/M 6(R1)X6X15X90
SEMD9908005070E 4G MILL 2FL 30deg. Helix Corner Radius E/M 8(R0.5)X8X20X70
SEMD9908005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 8(R0.5)X8X20X100
SEMD9910005075E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R0.5)X10X25X75
SEMD9910005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R0.5)X10X25X100
SEMD9910010E 4G MILL 2FL 30deg. Helix Corner Radius E/M 10(R1)X10X25X100
SEMD9912005080E 4G MILL 2FL 30deg. Helix Corner Radius E/M 12(R0.5)X12X30X80
SEMD9912005E 4G MILL 2FL 30deg. Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0101002E 4G MILL 4FL 30deg. Helix Corner Radius E/M 1(R0.2)X6X2.5X50
SEME0103002E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R0.2)X6X8X60
SEME0103005E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R0.5)X6X8X60
SEME0103010E 4G MILL 4FL Multiple Helix Corner Radius E/M 3(R1)X6X8X60
SEME01040024SE 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.2)X4X10X70
SEME0104002E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.2)X6X10X70
SEME0104003E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.3)X6X10X70
SEME01040054SE 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.5)X4X10X70
SEME0104005E 4G MILL 4FL Multiple Helix Corner Radius E/M 4(R0.5)X6X10X70
SEME0105005E 4G MILL 4FL Multiple Helix Corner Radius E/M 5(R0.5)X6X13X90
SEME0106003E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R0.3)X6X15X90
SEME0106005E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R0.5)X6X15X90
SEME0106010E 4G MILL 4FL Multiple Helix Corner Radius E/M 6(R1)X6X15X90
SEME0108003E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.3)X8X20X100
SEME0108005070E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.5)X8X20X70
SEME0108005E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R0.5)X8X20X100
SEME0108010070E 4G MILL 4FL Multiple Helix Corner Radius E/M 8(R1)X8X20X70
SEME0110005E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R0.5)X10X25X100
SEME0110010 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X100
SEME0110010075E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X75
SEME0110010E 4G MILL 4FL Multiple Helix Corner Radius E/M 10(R1)X10X25X100
SEME0112005 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0112005080E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X80
SEME0112005E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R0.5)X12X30X110
SEME0112015E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R1.5)X12X30X110
SEME0112020E 4G MILL 4FL Multiple Helix Corner Radius E/M 12(R2)X12X30X110
SEME35002E 4G MILL 2FL 30deg. Helix E/M 0.2X4X0.4X40
SEME35003E 4G MILL 2FL 30deg. Helix E/M 0.3X4X0.6X40
SEME35004E 4G MILL 2FL 30deg. Helix E/M 0.4X4X0.8X40
SEME35005E 4G MILL 2FL 30deg. Helix E/M 0.5X4X1X40
SEME35006E 4G MILL 2FL 30deg. Helix E/M 0.6X4X1.2X40
SEME350083SE 4G MILL 2FL 30deg. Helix E/M 0.8X3X1.6X40
SEME35008E 4G MILL 2FL 30deg. Helix E/M 0.8X4X1.6X40
SEME350104SE 4G MILL 2FL 30deg. Helix E/M 1X4X2.5X50
SEME350114SE 4G MILL 2FL 30deg. Helix E/M 1.1X4X3X50
SEME350154SE 4G MILL 2FL 30deg. Helix E/M 1.5X4X4X50
SEME350204SE 4G MILL 2FL 30deg. Helix E/M 2X4X6X50
SEME350214SE 4G MILL 2FL 30deg. Helix E/M 2.1X4X6X50
SEME35025E 4G MILL 2FL 30deg. Helix E/M 2.5X6X7X50
SEME350304SE 4G MILL 2FL 30deg. Helix E/M 3X4X8X50
SEME35030E 4G MILL 2FL 30deg. Helix E/M 3X6X8X50
SEME35035E 4G MILL 2FL 30deg. Helix E/M 3.5X6X10X50
SEME35040E 4G MILL 2FL 30deg. Helix E/M 4X6X10X50
SEME35045E 4G MILL 2FL 30deg. Helix E/M 4.5X6X14X50
SEME35050E 4G MILL 2FL 30deg. Helix E/M 5X6X15X60
SEME35055E 4G MILL 2FL 30deg. Helix E/M 5.5X6X15X60
SEME35060E 4G MILL 2FL 30deg. Helix E/M 6X6X15X60
SEME35065E 4G MILL 2FL 30deg. Helix E/M 6.5X8X18X60
SEME35070E 4G MILL 2FL 30deg. Helix E/M 7X8X20X60
SEME35080E 4G MILL 2FL 30deg. Helix E/M 8X8X20X70
SEME35090E 4G MILL 2FL 30deg. Helix E/M 9X10X22X70
SEME35100E 4G MILL 2FL 30deg. Helix E/M 10X10X25X75
SEME35120E 4G MILL 2FL 30deg. Helix E/M 12X12X30X80
SEME36010E 4G MILL 4FL 30deg. Helix E/M 1X6X2.5X50
SEME36015E 4G MILL 4FL 30deg. Helix E/M 1.5X6X4X50
SEME36020E 4G MILL 4FL 30deg. Helix E/M 2X6X6X50
SEME36030E 4G MILL 4FL Multiple Helix E/M 3X6X8X50
SEME36035E 4G MILL 4FL Multiple Helix E/M 3.5X6X10X50
SEME36040E 4G MILL 4FL Multiple Helix E/M 4X6X10X50
SEME36045E 4G MILL 4FL Multiple Helix E/M 4.5X6X14X50
SEME36050E 4G MILL 4FL Multiple Helix E/M 5X6X15X60
SEME36060E 4G MILL 4FL Multiple Helix E/M 6X6X15X60
SEME36075E 4G MILL 4FL Multiple Helix E/M 7.5X8X20X60
SEME36080E 4G MILL 4FL Multiple Helix E/M 8X8X20X70
SEME36090 4G MILL 4FL Multiple Helix E/M 9X10X22X70
SEME36090E 4G MILL 4FL Multiple Helix E/M 9X10X22X70
SEME36100 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME36100E 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME36110E 4G MILL 4FL Multiple Helix E/M 11X12X30X75
SEME36120E 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME36130E 4G MILL 4FL Multiple Helix E/M 13X12X35X100
SEME36150E 4G MILL 4FL Multiple Helix E/M 15X16X38X100
SEME36160E 4G MILL 4FL Multiple Helix E/M 16X16X40X100
SEME36170E 4G MILL 4FL Multiple Helix E/M 17X16X42X100
SEME36180E 4G MILL 4FL Multiple Helix E/M 18X16X45X100
SEME36190E 4G MILL 4FL Multiple Helix E/M 19X20X45X100
SEME36210E 4G MILL 4FL Multiple Helix E/M 21X20X45X100
SEME36220E 4G MILL 4FL Multiple Helix E/M 22X20X45X100
SEME36230E 4G MILL 4FL Multiple Helix E/M 23X25X50X120
SEME36240E 4G MILL 4FL Multiple Helix E/M 24X25X50X120
SEME36250E 4G MILL 4FL Multiple Helix E/M 25X25X50X120
SEME58120 4G MILL 2FL 0deg. Helix Ball E/M 12X12X32X110
SEME59060E 4G MILL 3FL 30deg. Helix Ball E/M 6X6X6X90
SEME6100200201E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.2(R0.02)X4X0.3(1)X40
SEME6100400502E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.4(R0.05)X4X0.6(2)X40
SEME6100600504E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 0.6(R0.05)X4X0.9(4)X45
SEME6101000506E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.05)X4X1.5(6)X50
SEME610100106E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.1)X4X1.5(6)X50
SEME610100206E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.2)X4X1.5(6)X50
SEME610100303E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 1(R0.3)X4X1.5(3)X50
SEME610200108E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 2(R0.1)X4X3(8)X50
SEME610200208E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 2(R0.2)X4X3(8)X50
SEME610300112E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.1)X6X4.5(12)X50
SEME610300212 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.2)X6X4.5(12)X50
SEME610300212E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 3(R0.2)X6X4.5(12)X50
SEME610400110E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.1)X6X6(10)X50
SEME610400116E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.1)X6X6(16)X60
SEME610400216 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.2)X6X6(16)X60
SEME610400514E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.5)X6X6(14)X60
SEME610400516E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 4(R0.5)X6X6(16)X60
SEME6106002E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 6(R0.2)X6X9(20)X60
SEME6106005 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 6(R0.5)X6X9(20)X60
SEME6108010 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1)X8X12(25)X70
SEME6108010E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1)X8X12(25)X70
SEME6108015E 4G MILL 2FL 30deg. Helix Rib Corner Radius E/M 8(R1.5)X8X12(25)X70
SEME62030050230E 4G MILL 2FL 30deg. Helix Taper Neck Corner Radius E/M(TiAlN) 3(R0.5)X6X4.5(30)X70(2˚)
SEME640100308E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 1(R0.3)X4X1.5(8)X50
SEME640200330E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 2(R0.3)X4X3(30)X70
SEME640200510E 4G MILL 4FL 30deg. Helix Rib Corner Radius E/M 2(R0.5)X4X3(10)X50
SEME640300330E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 3(R0.3)X6X4.5(30)X70
SEME640400516E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 4(R0.5)X6X6(16)X60
SEME6406005E 4G MILL 4FL Multiple Helix Rib Corner Radius E/M 6(R0.5)X6X9(20)X60
SEME6610020 4G MILL 4FL 10deg. Helix Corner Radius E/M 10(R2)X10X10(25)X75
SEME6610020100 4G MILL 4FL 10deg. Helix Corner Radius E/M 10(R2)X10X10(25)X100
SEME6612020 4G MILL 4FL 10deg. Helix Corner Radius E/M 12(R2)X12X12(30)X80
SEME7012050E 4G MILL 2FL 30deg. Helix Long E/M 12X12X50X100
SEME7014060E 4G MILL 2FL 30deg. Helix Long E/M 14X16X60X150
SEME7020050E 4G MILL 2FL 30deg. Helix Long E/M 20X20X50X110
SEME7020090200E 4G MILL 2FL 30deg. Helix Long E/M 20X20X90X200
SEME7101006E 4G MILL 4FL 38deg. Helix E/M 1X6X6X50
SEME7101506E 4G MILL 4FL 38deg. Helix E/M 1.5X6X6X50
SEME7101510E 4G MILL 4FL 38deg. Helix E/M 1.5X6X10X50
SEME7102010E 4G MILL 4FL 38deg. Helix E/M 2X6X10X50
SEME7103010E 4G MILL 4FL 38deg. Helix E/M 3X6X10X50
SEME7104012E 4G MILL 4FL 38deg. Helix E/M 4X6X12X50
SEME7104016E 4G MILL 4FL 38deg. Helix E/M 4X6X16X50
SEME71050E 4G MILL 4FL Multiple Helix E/M 5X6X15X60
SEME7106020E 4G MILL 4FL 38deg. Helix E/M 6X6X20X60
SEME71060E 4G MILL 4FL Multiple Helix E/M 6X6X15X60
SEME7108025E 4G MILL 4FL 38deg. Helix E/M 8X8X25X70
SEME71080E 4G MILL 4FL Multiple Helix E/M 8X8X20X70
SEME7110022E 4G MILL 4FL Multiple Helix E/M 10X10X22X65
SEME7110035E 4G MILL 4FL 38deg. Helix E/M 10X10X35X75
SEME71100E 4G MILL 4FL Multiple Helix E/M 10X10X25X75
SEME71120 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME7112026E 4G MILL 4FL Multiple Helix E/M 12X12X26X70
SEME71120E 4G MILL 4FL Multiple Helix E/M 12X12X30X80
SEME71160E 4G MILL 4FL Multiple Helix E/M 16X16X40X100
SEME71200E 4G MILL 4FL Multiple Helix E/M 20X20X45X100
SEME7202010E 4G MILL 4FL 30deg. Helix Long E/M 2X6X10X60
SEME7202014E 4G MILL 4FL 30deg. Helix Long E/M 2X6X14X60
SEME7203012E 4G MILL 4FL 30deg. Helix Long E/M 3X6X12X70
SEME7203016E 4G MILL 4FL 30deg. Helix Long E/M 3X6X16X70
SEME7204016E 4G MILL 4FL 30deg. Helix Long E/M 4X6X16X70
SEME7204026E 4G MILL 4FL 30deg. Helix Long E/M 4X6X26X70
SEME7206020 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X70
SEME7206020090E 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X90
SEME7206020E 4G MILL 4FL 30deg. Helix Long E/M 6X6X20X70
SEME7206030E 4G MILL 4FL 30deg. Helix Long E/M 6X6X30X80
SEME7206040120E 4G MILL 4FL 30deg. Helix Long E/M 6X6X40X120
SEME7208025E 4G MILL 4FL 30deg. Helix Long E/M 8X8X25X80
SEME7208030100E 4G MILL 4FL 30deg. Helix Long E/M 8X8X30X100
SEME7208040120E 4G MILL 4FL 30deg. Helix Long E/M 8X8X40X120
SEME7208040E 4G MILL 4FL 30deg. Helix Long E/M 8X8X40X90
SEME7210030100E 4G MILL 4FL 30deg. Helix Long E/M 10X10X30X100
SEME7210035E 4G MILL 4FL 30deg. Helix Long E/M 10X10X35X90
SEME7210040120E 4G MILL 4FL 30deg. Helix Long E/M 10X10X40X120
SEME7210050200E 0 4G MILL 4FL 30deg. Helix Long E/M 10X10X50X200
SEME7210050E 4G MILL 4FL 30deg. Helix Long E/M 10X10X50X100
SEME7212040E 4G MILL 4FL 30deg. Helix Long E/M 12X12X40X100
SEME7212045E 4G MILL 4FL 30deg. Helix Long E/M 12X12X45X130
SEME7212050150E 4G MILL 4FL 30deg. Helix Long E/M 12X12X50X150
SEME7212060E 4G MILL 4FL 30deg. Helix Long E/M 12X12X60X110
SEME7214060E 4G MILL 4FL 30deg. Helix Long E/M 14X16X60X150
SEME7216050E 4G MILL 4FL 30deg. Helix Long E/M 16X16X50X110
SEME7216060E 4G MILL 4FL 30deg. Helix Long E/M 16X16X60X120
SEME7216080E 4G MILL 4FL 30deg. Helix Long E/M 16X16X80X150
SEME72200110E 4G MILL 4FL 30deg. Helix Long E/M 20X20X110X200
SEME7220080E 4G MILL 4FL 30deg. Helix Long E/M 20X20X80X150
SEME7225070E 4G MILL 4FL 30deg. Helix Long E/M 25X25X70X150
SEME7301506E 4G MILL 4FL 30deg. Helix Rib E/M 1.5X4X2.3(6)X50
SEME7302006E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(6)X50
SEME7302008E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(8)X50
SEME7302010E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(10)X50
SEME7302014E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(14)X50
SEME7302016E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(16)X50
SEME7302018E 4G MILL 4FL 30deg. Helix Rib E/M 2X4X3(18)X50
SEME7303010E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(10)X50
SEME7303012E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(12)X50
SEME7303014E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(14)X60
SEME7303016E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(16)X60
SEME7303020E 4G MILL 4FL 30deg. Helix Rib E/M 3X6X4.5(20)X60
SEME7304014E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(14)X60
SEME7304016E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(16)X60
SEME7304020E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(20)X60
SEME7304026E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(26)X65
SEME7304040E 4G MILL 4FL 30deg. Helix Rib E/M 4X6X6(40)X80
SEME7305030E 4G MILL 4FL 30deg. Helix Rib E/M 5X6X8(30)X70
SEME7306032E 4G MILL 4FL 30deg. Helix Rib E/M 6X6X9(32)X90
SEME7310045E 4G MILL 4FL 30deg. Helix Rib E/M 10X10X15(45)X100
SEME75060E 4G MILL 6FL 45deg. Helix E/M 6X6X15X60
SEME7508035E 4G MILL 6FL 45deg. Helix E/M 8X8X35X90
SEME75080E 4G MILL 6FL 45deg. Helix E/M 8X8X20X70
SEME75100E 4G MILL 6FL 45deg. Helix E/M 10X10X25X75
SEME7512040E 4G MILL 6FL 45deg. Helix E/M 12X12X40X90
SEME7512060E 4G MILL 6FL 45deg. Helix E/M 12X12X60X110
SEME75120E 4G MILL 6FL 45deg. Helix E/M 12X12X30X80
SEME7516060E 4G MILL 6FL 45deg. Helix E/M 16X16X60X120
SEME7516090E 4G MILL 6FL 45deg. Helix E/M 16X16X90X150
SEME78005005 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(0.5˚)
SEME7800501 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(1˚)
SEME78005015 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(1.5˚)
SEME7800502 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(2˚)
SEME7800503 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2X45(3˚)
SEME7800505 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2.5X45(5˚)
SEME7800510 4G MILL 2FL 30deg. Helix Taper E/M 0.5X4X2.5X45(10˚)
SEME78006005 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(0.5˚)
SEME7800601 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(1˚)
SEME78006015 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(1.5˚)
SEME7800602 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(2˚)
SEME7800603 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X2.4X45(3˚)
SEME7800605 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X3X45(5˚)
SEME7800610 4G MILL 2FL 30deg. Helix Taper E/M 0.6X4X3X45(10˚)
SEME78008005 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(30')
SEME7800801 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(1˚)
SEME78008015 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(1.5˚)
SEME7800802 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(2˚)
SEME7800803 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X3.2X45(3˚)
SEME7800805 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X4X45(5˚)
SEME7800810 4G MILL 2FL 30deg. Helix Taper E/M 0.8X4X4X45(10˚)
SEME78010005 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(30')
SEME7801001 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(1˚)
SEME78010015 4G MILL 2FL 30deg. Helix Taper E/M 1X4X4X50(1.5˚)
SEME7801002 4G MILL 2FL 30deg. Helix Taper E/M 1X4X6X50(2˚)
SEME7801003 4G MILL 2FL 30deg. Helix Taper E/M 1X4X6X50(3˚)
SEME7801005 4G MILL 2FL 30deg. Helix Taper E/M 1X4X8X50(5˚)
SEME7801010 4G MILL 2FL 30deg. Helix Taper E/M 1X4X8X50(10˚)
SEME78015005 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(30')
SEME7801501 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(1˚)
SEME78015015 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X6X50(1.5˚)
SEME7801502 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X8X50(2˚)
SEME7801503 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X8X50(3˚)
SEME7801505 4G MILL 2FL 30deg. Helix Taper E/M 1.5X4X10X50(5˚)
SEME7801510 4G MILL 2FL 30deg. Helix Taper E/M 1.5X6X10X50(10˚)
SEME78020005 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(30')
SEME7802001 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(1˚)
SEME78020015 4G MILL 2FL 30deg. Helix Taper E/M 2X4X8X50(1.5˚)
SEME7802002 4G MILL 2FL 30deg. Helix Taper E/M 2X4X10X50(2˚)
SEME7802003 4G MILL 2FL 30deg. Helix Taper E/M 2X4X10X50(3˚)
SEME7802005 4G MILL 2FL 30deg. Helix Taper E/M 2X6X12X50(5˚)
SEME7802010 4G MILL 2FL 30deg. Helix Taper E/M 2X8X12X50(10˚)
SEME7802510 4G MILL 2FL 30deg. Helix Taper E/M 2.5X8X14X50(10˚)
SEME78030005 4G MILL 2FL 30deg. Helix Taper E/M 3X6X12X50(30')
SEME7803001 4G MILL 2FL 30deg. Helix Taper E/M 3X6X12X50(1˚)
SEME7803002 4G MILL 2FL 30deg. Helix Taper E/M 3X6X14X50(2˚)
SEME7803003 4G MILL 2FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME7803005 4G MILL 2FL 30deg. Helix Taper E/M 3X6X16X50(5˚)
SEME78040005 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(30')
SEME7804001 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(1˚)
SEME7804002 4G MILL 2FL 30deg. Helix Taper E/M 4X6X16X60(2˚)
SEME7804003 4G MILL 2FL 30deg. Helix Taper E/M 4X6X19X60(3˚)
SEME7804005 4G MILL 2FL 30deg. Helix Taper E/M 4X8X22X65(5˚)
SEME78060005 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(30')
SEME7806001 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(1˚)
SEME7806002 4G MILL 2FL 30deg. Helix Taper E/M 6X8X20X65(2˚)
SEME81030005 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(30')
SEME8103001 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(1˚)
SEME81030015 4G MILL 4FL 30deg. Helix Taper E/M 3X6X12X50(1.5˚)
SEME8103002 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(2˚)
SEME8103003 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME8103003E 4G MILL 4FL 30deg. Helix Taper E/M 3X6X14X50(3˚)
SEME8103005 4G MILL 4FL 30deg. Helix Taper E/M 3X6X16X50(5˚)
SEME81040005 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(30')
SEME8104001 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(1˚)
SEME81040015 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(1.5˚)
SEME8104002 4G MILL 4FL 30deg. Helix Taper E/M 4X6X16X60(2˚)
SEME8104003 4G MILL 4FL 30deg. Helix Taper E/M 4X6X19X60(3˚)
SEME8104005 4G MILL 4FL 30deg. Helix Taper E/M 4X8X22X65(5˚)
SEME8106001 4G MILL 4FL 30deg. Helix Taper E/M 6X8X20X65(1˚)
SEME81080005 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(30')
SEME8108001 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(1˚)
SEME81080015 4G MILL 4FL 30deg. Helix Taper E/M 8X10X35X90(1.5˚)
SEME8108002 4G MILL 4FL 30deg. Helix Taper E/M 8X10X28X90(2˚)
SEME8108005 4G MILL 4FL 30deg. Helix Taper E/M 8X16X45X100(5˚)
SEME950080208 4G MILL 4FL 30deg. Helix Taper E/M 0.8X4X8X45(2˚)
SEME950100210 4G MILL 4FL 30deg. Helix Taper E/M 1X4X10X50(2˚)
SEME9501500510 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X10X50(30')
SEME950150112 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X12X50(1˚)
SEME950150212 4G MILL 4FL 30deg. Helix Taper E/M 1.5X4X12X50(2?)
SEME9502000512 4G MILL 4FL 30deg. Helix Taper E/M 2X4X12X50(30')
SG9E76040 4G MILL MFL 20deg. Helix Roughing E/M 4X6X10X50
New
Dao phay sau nhiệt luyện NX-5070
• Đường kính: phẳng D0.3-D20 mm, cầu R0.05- R12.5
• Dao hợp kim cỡ hạt nano, chịu mài mòn tốt
• Độ bóng bề mặt cao
• Gia công vật liệu thép trước nhiệt luyện và thép sau nhiệt luyện độ cứng từ 50-70 HRC
| Mã sản phẩm | Mô tả | Kích thước |
| SGNF01002 | NX5070 2FL 30deg. Helix Ball E/M | 0.2X4X0.4X40 |
| SGNF01003 | NX5070 2FL 30deg. Helix Ball E/M | 0.3X4X0.6X40 |
| SGNF01004 | NX5070 2FL 30deg. Helix Ball E/M | 0.4X4X0.8X40 |
| SGNF01005 | NX5070 2FL 30deg. Helix Ball E/M | 0.5X4X1X40 |
| SGNF01006 | NX5070 2FL 30deg. Helix Ball E/M | 0.6X4X1.2X40 |
| SGNF01008 | NX5070 2FL 30deg. Helix Ball E/M | 0.8X4X1.6X40 |
| SGNF01010 | NX5070 2FL 30deg. Helix Ball E/M | 1X6X2.5X50 |
| SGNF01015 | NX5070 2FL 30deg. Helix Ball E/M | 1.5X6X4X50 |
| SGNF01020 | NX5070 2FL 30deg. Helix Ball E/M | 2X6X5X50 |
| SGNF01025 | NX5070 2FL 30deg. Helix Ball E/M | 2.5X6X7X60 |
| SGNF01030 | NX5070 2FL 30deg. Helix Ball E/M | 3X6X8X60 |
| SGNF01040 | NX5070 2FL 30deg. Helix Ball E/M | 4X6X8X70 |
| SGNF01050 | NX5070 2FL 30deg. Helix Ball E/M | 5X6X10X80 |
| SGNF01060 | NX5070 2FL 30deg. Helix Ball E/M | 6X6X12X90 |
| SGNF01060060 | NX5070 2FL 30deg. Helix Ball E/M | 6X6X12X60 |
| SGNF01080 | NX5070 2FL 30deg. Helix Ball E/M | 8X8X14X100 |
| SGNF01100 | NX5070 2FL 30deg. Helix Ball E/M | 10X10X18X100 |
| SGNF01120 | NX5070 2FL 30deg. Helix Ball E/M | 12X12X22X110 |
| SGNF0200201 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.2X4X0.2(1)X40 |
| SGNF0200301 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(1)X40 |
| SGNF0200302 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(2)X40 |
| SGNF0200303 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.3X4X0.3(3)X40 |
| SGNF0200402 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(2)X40 |
| SGNF0200403 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(3)X40 |
| SGNF0200405 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.4X4X0.4(5)X40 |
| SGNF0200502 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.5X4X0.5(2)X40 |
| SGNF0200506 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.5X4X0.5(6)X40 |
| SGNF0200603 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(3)X40 |
| SGNF0200605 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(5)X40 |
| SGNF0200606 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(6)X40 |
| SGNF0200608 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.6X4X0.6(8)X40 |
| SGNF0200804 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(4)X40 |
| SGNF0200806 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(6)X40 |
| SGNF0200810 | NX5070 2FL 30deg. Helix Rib Ball E/M | 0.8X4X0.8(10)X40 |
| SGNF0201004 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(4)X45 |
| SGNF0201006 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(6)X45 |
| SGNF0201008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(8)X45 |
| SGNF0201010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(10)X45 |
| SGNF0201012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(12)X45 |
| SGNF0201016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1X4X1(16)X45 |
| SGNF0201504 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(4)X45 |
| SGNF0201508 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(8)X45 |
| SGNF0201512 | NX5070 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(12)X45 |
| SGNF0202006 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(6)X45 |
| SGNF0202008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(8)X45 |
| SGNF0202010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(10)X45 |
| SGNF0202012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(12)X45 |
| SGNF0202016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(16)X50 |
| SGNF0202020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 2X4X3(20)X50 |
| SGNF0203008 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(8)X55 |
| SGNF0203010 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(10)X55 |
| SGNF0203012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(12)X55 |
| SGNF0203014 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(14)X55 |
| SGNF0203016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(16)X55 |
| SGNF0203035 | NX5070 2FL 30deg. Helix Rib Ball E/M | 3X6X4(35)X75 |
| SGNF0204012 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(12)X55 |
| SGNF0204016 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(16)X55 |
| SGNF0204020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(20)X60 |
| SGNF0204026 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(26)X60 |
| SGNF0204030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(30)X70 |
| SGNF0204040 | NX5070 2FL 30deg. Helix Rib Ball E/M | 4X6X5(40)X80 |
| SGNF0206020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 6X6X8(20)X60 |
| SGNF0206030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 6X6X8(30)X60 |
| SGNF0208020 | NX5070 2FL 30deg. Helix Rib Ball E/M | 8X8X10(20)X80 |
| SGNF0208030 | NX5070 2FL 30deg. Helix Rib Ball E/M | 8X8X10(30)X100 |
| SGNF0210035 | NX5070 2FL 30deg. Helix Rib Ball E/M | 10X10X12(35)X100 |
| SGNF040100104 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 1(R0.1)X4X2(4)X45 |
| SGNF040100106 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 1(R0.1)X4X2(6)X45 |
| SGNF040200206 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(6)X45 |
| SGNF040200208 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(8)X45 |
| SGNF040200210 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 2(R0.2)X4X3(10)X45 |
| SGNF040300216 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 3(R0.2)X6X4.5(16)X55 |
| SGNF040400216 | NX5070 2FL 35deg. Helix Rib Corner Radius E/M | 4(R0.2)X6X6(16)X55 |
| SGNF0506005 | NX5070 4FL Multiple Helix Corner Radius E/M | 6(R0.5)X6X15X90 |
| SGNF0506010 | NX5070 4FL Multiple Helix Corner Radius E/M | 6(R1)X6X15X90 |
| SGNF0508005 | NX5070 4FL Multiple Helix Corner Radius E/M | 8(R0.5)X8X20X100 |
| SGNF0508010 | NX5070 4FL Multiple Helix Corner Radius E/M | 8(R1)X8X20X100 |
| SGNF0510010 | NX5070 4FL Multiple Helix Corner Radius E/M | 10(R1)X10X25X100 |
| SGNF0510020 | NX5070 4FL Multiple Helix Corner Radius E/M | 10(R2)X10X25X100 |
| SGNF0512010 | NX5070 4FL Multiple Helix Corner Radius E/M | 12(R1)X12X30X110 |
| SGNF0512020 | NX5070 4FL Multiple Helix Corner Radius E/M | 12(R2)X12X30X110 |
| SGNF060400510 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(10)X55 |
| SGNF060400516 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(16)X55 |
| SGNF060400520 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 4(R0.5)X6X6(20)X60 |
| SGNF0606005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 6(R0.5)X6X9(20)X60 |
| SGNF0606010 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 6(R1)X6X9(20)X60 |
| SGNF0608005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 8(R0.5)X8X12(22)X70 |
| SGNF0608010 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 8(R1)X8X12(22)X70 |
| SGNF0610005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 10(R0.5)X10X15(25)X75 |
| SGNF0610020 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 10(R2)X10X15(25)X75 |
| SGNF0612005 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 12(R0.5)X12X18(30)X80 |
| SGNF0612020 | NX5070 4FL Multiple Helix Rib Corner Radius E/M | 12(R2)X12X18(30)X80 |
| SGNF07002 | NX5070 2FL 35deg. Helix E/M | 0.2X4X0.4X40 |
| SGNF07003 | NX5070 2FL 35deg. Helix E/M | 0.3X4X0.6X40 |
| SGNF07004 | NX5070 2FL 35deg. Helix E/M | 0.4X4X0.8X40 |
| SGNF07005 | NX5070 2FL 35deg. Helix E/M | 0.5X4X1X40 |
| SGNF07006 | NX5070 2FL 35deg. Helix E/M | 0.6X4X1.2X40 |
| SGNF07008 | NX5070 2FL 35deg. Helix E/M | 0.8X4X1.6X40 |
| SGNF07010 | NX5070 2FL 35deg. Helix E/M | 1X6X2.5X50 |
| SGNF07015 | NX5070 2FL 35deg. Helix E/M | 1.5X6X4X50 |
| SGNF07020 | NX5070 2FL 35deg. Helix E/M | 2X6X6X50 |
| SGNF07025 | NX5070 2FL 35deg. Helix E/M | 2.5X6X7X50 |
| SGNF07030 | NX5070 2FL 35deg. Helix E/M | 3X6X8X60 |
| SGNF07040 | NX5070 2FL 35deg. Helix E/M | 4X6X10X60 |
| SGNF07050 | NX5070 2FL 35deg. Helix E/M | 5X6X13X60 |
| SGNF07060 | NX5070 2FL 35deg. Helix E/M | 6X6X15X60 |
| SGNF07080 | NX5070 2FL 35deg. Helix E/M | 8X8X20X65 |
| SGNF07100 | NX5070 2FL 35deg. Helix E/M | 10X10X25X70 |
| SGNF07120 | NX5070 2FL 35deg. Helix E/M | 12X12X30X80 |
| SGNF0800201 | NX5070 2FL 35deg. Helix Rib E/M | 0.2X4X0.3(1)X40 |
| SGNF08002015 | NX5070 2FL 35deg. Helix Rib E/M | 0.2X4X0.3(1.5)X40 |
| SGNF0800302 | NX5070 2FL 35deg. Helix Rib E/M | 0.3X4X0.45(2)X40 |
| SGNF0800303 | NX5070 2FL 35deg. Helix Rib E/M | 0.3X4X0.45(3)X40 |
| SGNF0800402 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(2)X40 |
| SGNF0800403 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(3)X40 |
| SGNF0800404 | NX5070 2FL 35deg. Helix Rib E/M | 0.4X4X0.6(4)X40 |
| SGNF0800502 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(2)X40 |
| SGNF0800504 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(4)X40 |
| SGNF0800506 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(6)X40 |
| SGNF0800508 | NX5070 2FL 35deg. Helix Rib E/M | 0.5X4X0.7(8)X40 |
| SGNF0800603 | NX5070 2FL 35deg. Helix Rib E/M | 0.6X4X0.9(3)X40 |
| SGNF0800606 | NX5070 2FL 35deg. Helix Rib E/M | 0.6X4X0.9(6)X40 |
| SGNF0800804 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(4)X40 |
| SGNF0800806 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(6)X40 |
| SGNF0800808 | NX5070 2FL 35deg. Helix Rib E/M | 0.8X4X1.2(8)X40 |
| SGNF0801004 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(4)X45 |
| SGNF0801006 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(6)X45 |
| SGNF0801008 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(8)X45 |
| SGNF0801010 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(10)X45 |
| SGNF0801012 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(12)X45 |
| SGNF0801016 | NX5070 2FL 35deg. Helix Rib E/M | 1X4X1.5(16)X45 |
| SGNF0801506 | NX5070 2FL 35deg. Helix Rib E/M | 1.5X4X2.3(6)X45 |
| SGNF0801512 | NX5070 2FL 35deg. Helix Rib E/M | 1.5X4X2.3(12)X45 |
| SGNF0802008 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(8)X45 |
| SGNF0802010 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(10)X45 |
| SGNF0802012 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(12)X45 |
| SGNF0802016 | NX5070 2FL 35deg. Helix Rib E/M | 2X4X3(16)X50 |
| SGNF0803012 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(12)X55 |
| SGNF0803016 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(16)X55 |
| SGNF0803020 | NX5070 2FL 35deg. Helix Rib E/M | 3X6X4.5(20)X60 |
| SGNF0804012 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(12)X55 |
| SGNF0804016 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(16)X55 |
| SGNF0804020 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(20)X60 |
| SGNF0804026 | NX5070 2FL 35deg. Helix Rib E/M | 4X6X6(26)X60 |
| SGNF09010 | NX5070 4FL 45deg. Helix E/M | 1X6X2.5X50 |
| SGNF09015 | NX5070 4FL 45deg. Helix E/M | 1.5X6X4X50 |
| SGNF09020 | NX5070 4FL 45deg. Helix E/M | 2X6X6X50 |
| SGNF09030 | NX5070 4FL Multiple Helix E/M | 3X6X8X60 |
| SGNF09040 | NX5070 4FL Multiple Helix E/M | 4X6X10X60 |
| SGNF09050 | NX5070 4FL Multiple Helix E/M | 5X6X13X60 |
| SGNF09060 | NX5070 4FL Multiple Helix E/M | 6X6X15X60 |
| SGNF09080 | NX5070 4FL Multiple Helix E/M | 8X8X20X65 |
| SGNF09100 | NX5070 4FL Multiple Helix E/M | 10X10X25X70 |
| SGNF09120 | NX5070 4FL Multiple Helix E/M | 12X12X30X80 |
| SGNF1108020 | NX5070 4FL Multiple Helix Rib E/M | 8X8X12(20)X70 |
New
Dao phay K-1
• Đường kính: phẳng D1-D12 mm,
• Dao hợp kim cỡ hạt micro, chịu mài mòn tốt
• Gia công thép độ cứng trung bình và thép sau nhiệt luyện độ cứng đến 55 HRC
• Gia công từ thô, bán tinh đến tinh
| Mã sản phẩm | Mô tả | Kích thước |
| GMF86010 | K-1 2FL 30deg. Helix Short E/M | 1X4X3X50 |
| GMF86015 | K-1 2FL 30deg. Helix Short E/M | 1.5X4X4X50 |
| GMF86020 | K-1 2FL 30deg. Helix Short E/M | 2X4X6X50 |
| GMF86030 | K-1 2FL 30deg. Helix Short E/M | 3X4X8X50 |
| GMF86040 | K-1 2FL 30deg. Helix Short E/M | 4X4X11X50 |
| GMF86050 | K-1 2FL 30deg. Helix Short E/M | 5X6X13X50 |
| GMF86060 | K-1 2FL 30deg. Helix Short E/M | 6X6X16X50 |
| GMF86080 | K-1 2FL 30deg. Helix Short E/M | 8X8X20X60 |
| GMF86100 | K-1 2FL 30deg. Helix Short E/M | 10X10X25X75 |
| GMF86120 | K-1 2FL 30deg. Helix Short E/M | 12X12X32X75 |
| GMF87010 | K-1 4FL 30deg. Helix Short E/M | 1X4X3X50 |
| GMF87015 | K-1 4FL 30deg. Helix Short E/M | 1.5X4X4X50 |
| GMF87020 | K-1 4FL 30deg. Helix Short E/M | 2X4X6X50 |
| GMF87030 | K-1 4FL 30deg. Helix Short E/M | 3X4X8X50 |
| GMF87040 | K-1 4FL 30deg. Helix Short E/M | 4X4X11X50 |
| GMF87050 | K-1 4FL 30deg. Helix Short E/M | 5X6X13X50 |
| GMF87060 | K-1 4FL 30deg. Helix Short E/M | 6X6X16X50 |
| GMF87070 | K-1 4FL 30deg. Helix Short E/M | 7X8X20X60 |
| GMF87080 | K-1 4FL 30deg. Helix Short E/M | 8X8X20X60 |
| GMF87090 | K-1 4FL 30deg. Helix Short E/M | 9X10X20X75 |
| GMF87100 | K-1 4FL 30deg. Helix Short E/M | 10X10X25X75 |
| GMF87120 | K-1 4FL 30deg. Helix Short E/M | 12X12X32X75 |
| GMF88010 | K-1 2FL 30deg. Helix Short Ball E/M | 1X4X2X50 |
| GMF88015 | K-1 2FL 30deg. Helix Short Ball E/M | 1.5X4X4X50 |
| GMF88020 | K-1 2FL 30deg. Helix Short Ball E/M | 2X4X5X50 |
| GMF88030 | K-1 2FL 30deg. Helix Short Ball E/M | 3X4X6X50 |
| GMF88040 | K-1 2FL 30deg. Helix Short Ball E/M | 4X4X8X50 |
| GMF88050 | K-1 2FL 30deg. Helix Short Ball E/M | 5X6X10X50 |
| GMF88060 | K-1 2FL 30deg. Helix Short Ball E/M | 6X6X12X50 |
| GMF88080 | K-1 2FL 30deg. Helix Short Ball E/M | 8X8X14X60 |
| GMF88100 | K-1 2FL 30deg. Helix Short Ball E/M | 10X10X20X75 |
| GMF88120 | K-1 2FL 30deg. Helix Short Ball E/M | 12X12X24X75 |
New
Dao phay ALU-POWER
•Đường kính: phẳng D2-D25 mm,
• Dao hợp kim cỡ hạt micro
• Dùng đề gia công nhôm hoặc vật liệu phi từ tính
• Lưỡi cắt được thiết kế chuyên dụng
• Số me cắt 1-3 me
• Cho độ bóng bề mặt cao
• Gia công thô, bán tinh, tinh
| Mã sản phẩm | Mô tả sản phẩm | Kích thước |
| E5254006 | ALU-POWER 2FL 42deg. Helix E/M | 3/32X1/8X1/4X1_1/2 |
| E5521060 | ALU-POWER 2FL 45deg. Helix E/M | 6X6X13X57 |
| E5522020 | ALU-POWER 2FL 45deg. Helix Long E/M | 2X3X7X38 |
| E5522030 | ALU-POWER 2FL 45deg. Helix Long E/M | 3X6X8X57 |
| E5522040 | ALU-POWER 2FL 45deg. Helix Long E/M | 4X6X11X57 |
| E5522050 | ALU-POWER 2FL 45deg. Helix Long E/M | 5X6X13X57 |
| E5522060 | ALU-POWER 2FL 45deg. Helix Long E/M | 6X6X13X57 |
| E5522080 | ALU-POWER 2FL 45deg. Helix Long E/M | 8X8X19X63 |
| E5522100 | ALU-POWER 2FL 45deg. Helix Long E/M | 10X10X22X72 |
| E5522120 | ALU-POWER 2FL 45deg. Helix Long E/M | 12X12X26X83 |
| E5742060 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 6X6X16X57 |
| E5742080 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 8X8X16X63 |
| E5742100 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 10X10X22X72 |
| E5742120 | ALU-POWER 3FL 30deg. Helix Long Roughing(Coarse) E/M | 12X12X26X83 |
| E5908020 | ALU-POWER 3FL 40deg. Helix Ball E/M | 2X6X3(5)X60 |
| E5908025 | ALU-POWER 3FL 40deg. Helix Ball E/M | 2.5X6X4(6)X60 |
| E5908030 | ALU-POWER 3FL 40deg. Helix Ball E/M | 3X6X4.5(6.5)X60 |
| E5908040 | ALU-POWER 3FL 40deg. Helix Ball E/M | 4X6X6(8)X65 |
| E5908060 | ALU-POWER 3FL 40deg. Helix Ball E/M | 6X6X9(12)X75 |
| E5908080 | ALU-POWER 3FL 40deg. Helix Ball E/M | 8X8X12(25)X75 |
| E5908100 | ALU-POWER 3FL 40deg. Helix Ball E/M | 10X10X15(30)X80 |
| E5910100 | ALU-POWER 2FL 50deg. Helix Ball E/M | 10X10X8.5(35)X75 |
| E5930060 | ALU-POWER 2FL 25deg. Helix Corner Radius E/M | 6(R0.2)X6X8X65 |
| E5A18030 | ALU-POWER 3FL 45deg. Helix Long E/M | 3X6X10X50 |
| E5A18040 | ALU-POWER 3FL 45deg. Helix Long E/M | 4X6X13X50 |
| E5A18050 | ALU-POWER 3FL 45deg. Helix Long E/M | 5X6X17X55 |
| E5A18060 | ALU-POWER 3FL 45deg. Helix Long E/M | 6X6X17X55 |
| E5D70010 | ALU-CUT 3FL 45deg. Helix E/M | 1X6X3X50 |
| E5D70015 | ALU-CUT 3FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5D70020 | ALU-CUT 3FL 45deg. Helix E/M | 2X6X6X50 |
| E5D7002010 | ALU-CUT 3FL 45deg. Helix E/M | 2X6X10X60 |
| E5D70025 | ALU-CUT 3FL 45deg. Helix E/M | 2.5X6X10X55 |
| E5D7002512 | ALU-CUT 3FL 45deg. Helix E/M | 2.5X6X12X60 |
| E5D70030 | ALU-CUT 3FL 45deg. Helix E/M | 3X6X11X55 |
| E5D7003004 | ALU-CUT 3FL 45deg. Helix E/M | 3X6X4X45 |
| E5D70040 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X13X55 |
| E5D7004005 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X5X45 |
| E5D7004016 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X16X65 |
| E5D7004020 | ALU-CUT 3FL 45deg. Helix E/M | 4X6X20X70 |
| E5D70045 | ALU-CUT 3FL 45deg. Helix E/M | 4.5X6X15X55 |
| E5D70050 | ALU-CUT 3FL 45deg. Helix E/M | 5X6X17X55 |
| E5D70060 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X17X60 |
| E5D7006013 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X13X50 |
| E5D7006025 | ALU-CUT 3FL 45deg. Helix E/M | 6X6X25X70 |
| E5D70080 | ALU-CUT 3FL 45deg. Helix E/M | 8X8X22X70 |
| E5D70100 | ALU-CUT 3FL 45deg. Helix E/M | 10X10X27X75 |
| E5D70120 | ALU-CUT 3FL 45deg. Helix E/M | 12X12X32X80 |
| E5D70140 | ALU-CUT 3FL 45deg. Helix E/M | 14X14X37X90 |
| E5D70160 | ALU-CUT 3FL 45deg. Helix E/M | 16X16X42X100 |
| E5D71010 | ALU-CUT 2FL 45deg. Helix E/M | 1X6X3X50 |
| E5D71015 | ALU-CUT 2FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5D71020 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X6X50 |
| E5D7102008 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X8X50 |
| E5D7102010 | ALU-CUT 2FL 45deg. Helix E/M | 2X6X10X60 |
| E5D71025 | ALU-CUT 2FL 45deg. Helix E/M | 2.5X6X8X55 |
| E5D71030 | ALU-CUT 2FL 45deg. Helix E/M | 3X6X11X55 |
| E5D71040 | ALU-CUT 2FL 45deg. Helix E/M | 4X6X13X55 |
| E5D71050 | ALU-CUT 2FL 45deg. Helix E/M | 5X6X17X55 |
| E5D71060 | ALU-CUT 2FL 45deg. Helix E/M | 6X6X17X60 |
| E5D71080 | ALU-CUT 2FL 45deg. Helix E/M | 8X8X22X70 |
| E5D71100 | ALU-CUT 2FL 45deg. Helix E/M | 10X10X27X75 |
| E5D71120 | ALU-CUT 2FL 45deg. Helix E/M | 12X12X32X80 |
| E5D71140 | ALU-CUT 2FL 45deg. Helix E/M | 14X14X37X90 |
| E5D7208010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 8(R1)X8X12(25)X80 |
| E5D7212010 | ALU-CUT 3FL 45deg. Helix Long Corner Radius E/M | 12(R1)X12X20(35)X110 |
| E5D73060 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 6X6X15X60 |
| E5D73060C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 6X6X25X80 |
| E5D73080 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 8X8X20X65 |
| E5D73080C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 8X8X30X90 |
| E5D73100 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 10X10X25X70 |
| E5D73100C | ALU-CUT 3FL 45deg. Helix Long Roughing E/M | 10X10X40X100 |
| E5D73120 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 12X12X30X80 |
| E5D73120B | ALU-CUT 3FL 45deg. Helix Roughing E/M | 12X12X14(36)X100 |
| E5D73140 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 14X16X35X90 |
| E5D73160 | ALU-CUT 3FL 45˚ R E/M | 16X16X42X100 |
| E5D73160B | ALU-CUT 3FL 45deg. Helix Roughing E/M | 16X16X18(46)X120 |
| E5D73200 | ALU-CUT 3FL 45deg. Helix Roughing E/M | 20X20X48X100 |
| E5D74060 | ALU-CUT 3FL WAVE-CUT E/M | 6X6X13(20)X70 |
| E5D74080 | ALU-CUT 3FL WAVE-CUT E/M | 8X8X19(26)X80 |
| E5D74100 | ALU-CUT 3FL WAVE-CUT E/M | 10X10X22(32)X80 |
| E5D74120 | ALU-CUT 3FL WAVE-CUT E/M | 12X12X26(36)X90 |
| E5D74140 | ALU-CUT 3FL WAVE-CUT E/M | 14X16X28(40)X110 |
| E5D74160 | ALU-CUT 3FL WAVE-CUT E/M | 16X16X32(46)X120 |
| E5D74200 | ALU-CUT 3FL WAVE-CUT E/M | 20X20X38(52)X120 |
| E5E48060 | ALU-POWER 2FL 45deg. Helix Short E/M | 6X6X10X54 |
| E5E49030 | ALU-POWER 3FL 45deg. Helix Long E/M | 3X6X12X57 |
| E5E49040 | ALU-POWER 3FL 45deg. Helix Long E/M | 4X6X15X57 |
| E5E49050 | ALU-POWER 3FL 45deg. Helix Long E/M | 5X6X20X57 |
| E5E49060 | ALU-POWER 3FL 45deg. Helix Long E/M | 6X6X20X65 |
| E5E49080 | ALU-POWER 3FL 45deg. Helix Long E/M | 8X8X22X65 |
| E5E49100 | ALU-POWER 3FL 45deg. Helix Long E/M | 10X10X25X70 |
| E5E49120 | ALU-POWER 3FL 45deg. Helix Long E/M | 12X12X25X75 |
| E5E50030 | ALU-POWER 3FL 45deg. Helix E/M | 3X6X8(12)X57 |
| E5E50040 | ALU-POWER 3FL 45deg. Helix E/M | 4X6X11(18)X57 |
| E5E50060 | ALU-POWER 3FL 45deg. Helix E/M | 6X6X13(18)X57 |
| E5E51030 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 3(R0.5)X6X12X57 |
| E5E51040 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 4(R0.5)X6X15X57 |
| E5E51080 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 8(R0.5)X8X22X65 |
| E5E51100 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 10(R0.5)X10X25X70 |
| E5E51905 | ALU-POWER 3FL 45deg. Helix Long Corner Radius E/M | 8(R1)X8X22X65 |
| EG910060 | ALU-POWER 2FL 50deg. Helix Short Ball E/M(TiCN) | 6X6X5.5X55 |
| EG910080 | ALU-POWER 2FL 50? B E/M | 8X8X7(30)X65 |
| EG910100 | ALU-POWER 2FL 50deg. Helix Ball E/M | 10X10X8.5(35)X75 |
| EG99928494 | ALU-WIN 2FL 45deg. Helix Special E/M(TiCN) | 0.86X6X0.6X40 |
| EG99928495 | ALU-WIN 2FL 45deg. Helix Special E/M(TiCN) | 3X6X3X40 |
New
Dao phay ngón CBN
• Đường kính từ D0.5-D2 mm
• Đâu dao được gắn vật liệu CBN (Cubic Boron Nitride)
• Dùng để gia công tinh độ bóng rất cao
• Gia công vật liệu sau nhiệt luyện độ cứng đến 70HRc
• Khả năng chịu được nhiệt cắt cao, tuổi bền dao được cải thiện hơn nhiều so với vật liệu hợp kim.
• Năng suất gia công cao, tiết kiệm thời gian gia công
New
Dao phay CRX S
• Đường kính: phẳng D0.5-D12 mm, cầu R0.25- R6.0
• Dùng để gia công vật liệu điện cực đồng cũng như vật liệu phi từ tính khác
• Dao hợp kim được phủ lớp DLC (Dimond like coating)
• Độ bóng bề mặt cao
New
Dao phay D-Power Graphite
• Dao phay cao cấp chuyên dụng cho vật liệu graphite, được dung nhiều cho gia công điện cực graphite.
• Đường kính: phẳng D0.5-D12 mm, cầu R0.2-R6
New
Dao phay D-Power CFRP
• Đường kính: phẳng D6-D12 mm,
• Thiết kế lưỡi dao đặc biệt chuyên dung để gia công vật liệu composite.
• Sử dụng phổ biến trong ngành gia công chi tiết hàng không
New
Dao phay V7
• Đường kính từ D3-D25 mm
• Vật liệu hợp kim cỡ hạt micro
• Thiết kế lưỡi dao đặc biệt gia công, dung để gia công phay tốc độ cao và chế độ cắt nặng.
• Áp dụng cho gia công vật liệu thép trước nhiệt luyện và vật liệu Inox
New
Dao phay K-2
• Đường kính từ D1-D20 mm
• Dao hợp kim cỡ hạt micro
• Dao dung cho mục đích gia công thông thường từ thô đến tinh
| Mã sản phẩm | Mô tả | Kích thước | |
| E5C12010 | E5C70010 | ALPHA-ALU 2FL 45deg. Helix E/M | 1X6X3X40 |
| E5C12015 | E5C70015 | ALPHA-ALU 2FL 45deg. Helix E/M | 1.5X6X5X40 |
| E5C12020 | E5C70020 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 2X6X6X40 |
| E5C12025 | E5C70025 | ALPHA-ALU 2FL 45deg. Helix E/M | 2.5X6X8X40 |
| E5C12030 | E5C70030 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 3X6X11X50 |
| E5C12040 | E5C70040 | ALPHA-ALU 2FL 45deg. Helix E/M | 4X6X13X50 |
| E5C12050 | E5C70050 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 5X6X17X55 |
| E5C12060 | E5C70060 | ALPHA-ALU 2FL 45deg. Helix E/M | 6X6X17X55 |
| E5C12080 | E5C70080 | ALPHA-ALU 2FL 45deg. Helix Short E/M | 8X8X22X65 |
| E5C12100 | E5C70100 | ALPHA-ALU 2FL 45deg. Helix E/M | 10X10X27X70 |
| E5C12120 | E5C70120 | ALPHA-ALU 2FL 45deg. Helix E/M | 12X12X32X80 |
| E5C14010 | E5C72010 | ALPHA-ALU 3FL 45deg. Helix E/M | 1X6X3X50 |
| E5C14015 | E5C72015 | ALPHA-ALU 3FL 45deg. Helix E/M | 1.5X6X5X50 |
| E5C14020 | E5C72020 | ALPHA-ALU 3FL 45deg. Helix E/M | 2X6X6X50 |
| E5C14025 | E5C72025 | ALPHA-ALU 3FL 45deg. Helix E/M | 2.5X6X8X50 |
| E5C14030 | E5C72030 | ALPHA-ALU 3FL 45deg. Helix E/M | 3X6X11X50 |
| E5C14040 | E5C72040 | ALPHA-ALU 3FL 45deg. Helix E/M | 4X6X13X50 |
| E5C14050 | E5C72050 | ALPHA-ALU 3FL 45deg. Helix E/M | 5X6X17X55 |
| E5C14060 | E5C72060 | ALPHA-ALU 3FL 45deg. Helix E/M | 6X6X17X55 |
| E5C14070 | E5C72070 | ALPHA-ALU 3FL 45deg. Helix E/M | 7X8X22X65 |
| E5C14080 | E5C72080 | ALPHA-ALU 3FL 45deg. Helix E/M | 8X8X22X65 |
| E5C14100 | E5C72100 | ALPHA-ALU 3FL 45deg. Helix E/M | 10X10X27X70 |
| E5C14120 | E5C72120 | ALPHA-ALU 3FL 45deg. Helix E/M | 12X12X32X80 |
| E5C14140 | E5C72140 | ALPHA-ALU 3FL 45deg. Helix E/M | 14X14X37X85 |
| E5C14160 | E5C72160 | ALPHA-ALU 3FL 45deg. Helix E/M | 16X16X42X100 |
| E5C15040 | E5C73040 | ALPHA-ALU 3FL 45deg. Helix E/M | 4X6X16X70 |
| E5C15060 | E5C73060 | ALPHA-ALU 3FL 45deg. Helix E/M | 6X6X22X70 |
| E5C15080 | E5C73080 | ALPHA-ALU 3FL 45deg. Helix E/M | 8X8X28X80 |
| E5C15100 | E5C73100 | ALPHA-ALU 3FL 45deg. Helix E/M | 10X10X32X90 |
| E5C15120 | E5C73120 | ALPHA-ALU 3FL 45deg. Helix E/M | 12X12X38X95 |
| E5C15160 | E5C73160 | ALPHA-ALU 3FL 45deg. Helix Medium E/M | 16X16X52X110 |
| E5C16030015 | E5C74030015 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X15X65 |
| E5C16030020 | E5C74030020 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X20X70 |
| E5C16030025 | E5C74030025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 3X6X25X75 |
| E5C16040020 | E5C74040020 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 4X6X20X70 |
| E5C16040030 | E5C74040030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 4X6X30X80 |
| E5C16050025 | E5C74050025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X25X70 |
| E5C16050035 | E5C74050035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X35X80 |
| E5C16050040 | E5C74050040 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 5X6X40X85 |
| E5C16060025 | E5C74060025 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X25X70 |
| E5C16060030 | E5C74060030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X30X75 |
| E5C16060035 | E5C74060035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X35X80 |
| E5C16060042 | E5C74060042 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 6X6X42X90 |
| E5C16080030 | E5C74080030 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X30X80 |
| E5C16080040 | E5C74080040 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X40X90 |
| E5C16080045 | E5C74080045 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X45X95 |
| E5C16080050 | E5C74080050 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 8X8X50X100 |
| E5C16100035 | E5C74100035 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X35X90 |
| E5C16100045 | E5C74100045 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X45X100 |
| E5C16100065 | E5C74100065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 10X10X65X120 |
| E5C16120055 | E5C74120055 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X55X110 |
| E5C16120065 | E5C74120065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X65X120 |
| E5C16120075 | E5C74120075 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 12X12X75X135 |
| E5C16160065 | E5C74160065 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 16X16X65X135 |
| E5C16200075 | E5C74200075 | ALPHA-ALU 3FL 45deg. Helix Ex-Long E/M | 20X20X75X150 |
| EMB95010KN | EMC52010 | ALPHA-G 2FL 35deg. Helix Short E/M | 1X4X3X50 |
| EMB95015KN | EMC52015 | ALPHA-G 2FL 35deg. Helix Short E/M | 1.5X4X4X50 |
| EMB95020KN | EMC52020 | ALPHA-G 2FL 35deg. Helix Short E/M | 2X4X6X50 |
| EMB95025KN | EMC52025 | ALPHA-G 2FL 35deg. Helix Short E/M | 2.5X4X8X50 |
| EMB95030KN | EMC52030 | ALPHA-G 2FL 35deg. Helix Short E/M | 3X4X8X50 |
| EMB95040KN | EMC52040 | ALPHA-G 2FL 35deg. Helix Short E/M | 4X4X11X50 |
| EMB95045KN | EMC52045 | ALPHA-G 2FL 35deg. Helix Short E/M | 4.5X6X11X50 |
| EMB95050KN | EMC52050 | ALPHA-G 2FL 35deg. Helix Short E/M | 5X6X13X50 |
| EMB95060KN | EMC52060 | ALPHA-G 2FL 35deg. Helix Short E/M | 6X6X16X50 |
| EMB95080KN | EMC52080 | ALPHA-G 2FL 35deg. Helix Short E/M | 8X8X20X60 |
| EMB95090KN | EMC52090 | ALPHA-G 2FL 35deg. Helix Short E/M | 9X10X20X75 |
| EMB95100KN | EMC52100 | ALPHA-G 2FL 35deg. Helix Short E/M | 10X10X25X75 |
| EMB95120KN | EMC52120 | ALPHA-G 2FL 35deg. Helix Short E/M | 12X12X32X75 |
| EMB95901KN | EMC52901 | ALPHA-G 2FL 35deg. Helix Short E/M | 3X6X8X50 |
| EMB95903KN | EMC52903 | ALPHA-G 2FL 35deg. Helix Short E/M | 4X6X11X50 |
| EMB96010KN | EMC54010 | ALPHA-G 4FL 35deg. Helix Short E/M | 1X4X3X50 |
| EMB96015KN | EMC54015 | ALPHA-G 4FL 35deg. Helix Short E/M | 1.5X4X4X50 |
| EMB96020KN | EMC54020 | ALPHA-G 4FL 35deg. Helix Short E/M | 2X4X6X50 |
| EMB96025KN | EMC54025 | ALPHA-G 4FL 35deg. Helix Short E/M | 2.5X4X8X50 |
| EMB96030KN | EMC54030 | ALPHA-G 4FL 35deg. Helix Short E/M | 3X4X8X50 |
| EMB96040KN | EMC54040 | ALPHA-G 4FL 35deg. Helix Short E/M | 4X4X11X50 |
| EMB96050KN | EMC54050 | ALPHA-G 4FL 35deg. Helix Short E/M | 5X6X13X50 |
| EMB96060KN | EMC54060 | ALPHA-G 4FL 35deg. Helix Short E/M | 6X6X16X50 |
| EMB96070KN | EMC54070 | ALPHA-G 4FL 35deg. Helix Short E/M | 7X8X20X60 |
| EMB96080KN | EMC54080 | ALPHA-G 4FL 35deg. Helix Short E/M | 8X8X20X60 |
| EMB96100KN | EMC54100 | ALPHA-G 4FL 35deg. Helix Short E/M | 10X10X25X75 |
| EMB96120KN | EMC54120 | ALPHA-G 4FL 35deg. Helix Short E/M | 12X12X32X75 |
| EMB96140KN | EMC54140 | ALPHA-G 4FL 35deg. Helix Short E/M | 14X16X40X100 |
| EMB96160KN | EMC54160 | ALPHA-G 4FL 35deg. Helix Short E/M | 16X16X40X100 |
| EMB96180KN | EMC54180 | ALPHA-G 4FL 35deg. Helix Short E/M | 18X20X40X100 |
| EMB96200KN | EMC54200 | ALPHA-G 4FL 35deg. Helix Short E/M | 20X20X45X100 |
| EMB96901KN | EMC54901 | ALPHA-G 4FL 35deg. Helix Short E/M | 3X6X8X50 |
| EMB96903KN | EMC54903 | ALPHA-G 4FL 35deg. Helix Short E/M | 4X6X11X50 |
| EMB97010KN | EMC56010 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 1X4X2X50 |
| EMB97015KN | EMC56015 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 1.5X4X4X50 |
| EMB97020KN | EMC56020 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 2X4X5X50 |
| EMB97025KN | EMC56025 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 2.5X4X6X50 |
| EMB97030KN | EMC56030 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 3X4X6X50 |
| EMB97040KN | EMC56040 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 4X4X8X50 |
| EMB97050KN | EMC56050 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 5X6X10X50 |
| EMB97060KN | EMC56060 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 6X6X12X50 |
| EMB97080KN | EMC56080 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 8X8X14X60 |
| EMB97100KN | EMC56100 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 10X10X20X75 |
| EMB97120KN | EMC56120 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 12X12X24X75 |
| EMB97160KN | EMC56160 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 16X16X32X100 |
| EMB97200KN | EMC56200 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 20X20X40X100 |
| EMB97901KN | EMC56901 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 3X6X6X50 |
| EMB97902KN | EMC56902 | ALPHA-G 2FL 30deg. Helix Short Ball E/M | 4X6X8X50 |
| EMB98060KN | EMC57060 | ALPHA-G 6FL 45deg. Helix Short E/M | 6X6X16X50 |
| EMB98080KN | EMC57080 | ALPHA-G 6FL 45deg. Helix Short E/M | 8X8X19X60 |
| EMB98100KN | EMC57100 | ALPHA-G 6FL 45deg. Helix Short E/M | 10X10X22X75 |
| EMB98120KN | EMC57120 | ALPHA-G 6FL 45deg. Helix Short E/M | 12X12X26X75 |
| EMC01006020 | EMC59006020 | ALPHA-G 2FL 30deg. Helix Rib E/M | 0.6X4X0.9(2)X45 |
| EMC01025100 | EMC59025100 | ALPHA-G 2FL 30deg. Helix Rib E/M | 2.5X4X3.7(10)X45 |
| EMC02015100 | EMC60015100 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 1.5X4X1.5(10)X45 |
| EMC02020200 | EMC60020200 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(20)X55 |
| EMC02020220 | EMC60020220 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(22)X60 |
| EMC02020260 | EMC60020260 | ALPHA-G 2FL 30deg. Helix Rib Ball E/M | 2X4X2(26)X70 |
| EMC0304003 | EMC6104003 | ALPHA-G 2FL 30deg. Helix Corner Radius E/M | 4(R0.3)X6X12X70 |
| EMC0308010 | EMC6108010 | ALPHA-G 2FL 30deg. Helix Corner Radius E/M | 8(R1)X8X20X100 |
| EMC0406010 | EMC6206010 | ALPHA-G 4FL CR E/M | 6(R1)X6X15X90 |
| EMC0410020 | EMC6210020 | ALPHA-G 4FL 30deg. Helix Corner Radius E/M | 10(R2)X10X25X100 |
| EMC09060 | EMC67060 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 6X6X10X54 |
| EMC09080 | EMC67080 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 8X8X12X58 |
| EMC09100 | EMC67100 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 10X10X14X66 |
| EMC09120 | EMC67120 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 12X12X16X73 |
| EMC09200 | EMC67200 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 20X20X26X92 |
| EMC10060 | EMC68060 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 6X6X13X57 |
| EMC10080 | EMC68080 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 8X8X19X63 |
| EMC10100 | EMC68100 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 10X10X22X72 |
| EMC10120 | EMC68120 | ALPHA-SUS 4FL 30deg. Helix Short E/M | 12X12X26X83 |
| EMC11060 | EMC69060 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 6X6X13X60 |
| EMC11080 | EMC69080 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 8X8X19X65 |
| EMC11100 | EMC69100 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 10X10X22X70 |
| EMC11120 | EMC69120 | ALPHA-SUS 4FL 45deg. Helix Roughing(Fine) E/M | 12X12X26X80 |
| EMC11160 | EMC69160 | ALPHA-SUS 5FL 45deg. Helix Roughing(Fine) E/M | 16X16X42X110 |
| EMC45030KN | EMC53030 | ALPHA-G 2FL 35˚ LONG E/M | 3X4X15X60 |
| EMC45060KN | EMC53060 | ALPHA-G 2FL 35deg. Helix Long E/M | 6X6X30X75 |
| EMC45080KN | EMC53080 | ALPHA-G 2FL 35deg. Helix Long E/M | 8X8X35X100 |
| EMC45100KN | EMC53100 | ALPHA-G 2FL 35deg. Helix Long E/M | 10X10X45X100 |
| EMC45120KN | EMC53120 | ALPHA-G 2FL 35deg. Helix Long E/M | 12X12X45X100 |
| EMC47100KN | EMC55100 | ALPHA-G 4FL 35deg. Helix Long E/M | 10X10X45X100 |
| EMC47120KN | EMC55120 | ALPHA-G 4FL 35deg. Helix Long E/M | 12X12X45X100 |
| EMC47901KN | EMC55901 | ALPHA-G 4FL 35deg. Helix Long E/M | 3X6X15X60 |
| G9A23010 | K-2 CARBIDE 2FL 30deg. Helix Regular E/M | 1X4X3X50 | |
| G9A23050 | K-2 CARBIDE 2FL 30deg. Helix Regular E/M | 5X6X13X50 | |
| G9B52901 | CARBIDE 2FL 30deg. Helix Long Ball E/M(TiAlN) | 1X6X2X75 | |
| G9B52903 | CARBIDE 2FL 30deg. Helix Long Ball E/M(TiAlN) | 2X6X4X75 | |
| G9B80929 | K-2 CARBIDE 2FL 30deg. Helix Rib E/M | 2X4X3(18)X50 | |
| GFC05006 | GFC63006 | ALPHA-PLUS 2FL 30deg. Helix Stub E/M | 0.6X4X1.2X40 |
| GFC05010 | GFC63010 | ALPHA-PLUS 2FL 30deg. Helix E/M | 1X6X1.5(3)X50 |
| GFC05015 | GFC63015 | ALPHA-PLUS 2FL 30deg. Helix E/M | 1.5X6X1.7(4)X50 |
| GFC05020 | GFC63020 | ALPHA-PLUS 2FL 30deg. Helix E/M | 2X6X2(5)X50 |
| GFC05025 | GFC63025 | ALPHA-PLUS 2FL 30deg. Helix E/M | 2.5X6X2.5(6)X55 |
| GFC05030 | GFC63030 | ALPHA-PLUS 2FL 30deg. Helix E/M | 3X6X3(8)X55 |
| GFC05040 | GFC63040 | ALPHA-PLUS 2FL 30deg. Helix E/M | 4X6X4(10)X55 |
| GFC05050 | GFC63050 | ALPHA-PLUS 2FL 30deg. Helix E/M | 5X6X5(13)X55 |
| GFC05060 | GFC63060 | ALPHA-PLUS 2FL 30deg. Helix E/M | 6X6X6(15)X55 |
| GFC05080 | GFC63080 | ALPHA-PLUS 2FL 30deg. Helix E/M | 8X8X8(20)X65 |
| GFC05100 | GFC63100 | ALPHA-PLUS 2FL 30deg. Helix E/M | 10X10X10(25)X75 |
| GFC05120 | GFC63120 | ALPHA-PLUS 2FL 30deg. Helix E/M | 12X12X12(28)X85 |
| GFC06080 | GFC64080 | ALPHA-PLUS 4FL 30deg. Helix Stub E/M | 8X8X8(20)X65 |
| GFC07010 | GFC65010 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 1X6X1.5X50 |
| GFC07015 | GFC65015 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 1.5X6X2X50 |
| GFC07020 | GFC65020 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 2X6X2.5X50 |
| GFC07025 | GFC65025 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 2.5X6X3X50 |
| GFC07030 | GFC65030 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 3X6X4X60 |
| GFC07040 | GFC65040 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 4X6X5X60 |
| GFC07050 | GFC65050 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 5X6X6X60 |
| GFC07060 | GFC65060 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 6X6X7X60 |
| GFC07080 | GFC65080 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 8X8X9X60 |
| GFC07100 | GFC65100 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 10X10X11X60 |
| GFC07120 | GFC65120 | ALPHA-PLUS 2FL 30deg. Helix Ball E/M | 12X12X14X80 |
New
Dao phay Tank power
• Đường kính từ D1-D25 mm
• Vật liệu dao thép gió HSS-PM
• Dùng để gia công vật liệu có độ dai cao như Inox, thép carbon cao
• Ứng dụng gia công từ thô đến tinh.
New
Dao phay HSS
• Đường kính từ D1-D25 mm
• Vật liệu dao thép gió cao cấp HSS
• Dùng cho gia công các vật liệu cơ bản, ứng dụng phay thông thường, trên máy vạn năng hoặc máy CNC
• Ứng dụng gia công từ thô đến tinh.
New
Dao phay New Centery
• Đường kính từ D1-D25 mm
• Vật liệu dao hợp kim
• Dùng cho các loại vật liệu phổ thông và các ứng dụng phay thông thương
• Ứng dụng gia công từ thô đến tinh.
New
Dao khoan thay đầu
•Đường kính từ D12-D31.75 mm
• Chiều sâu khoan: 3D, 5D, 7D
• Đầu dao vật liệu hợp kim, thân dao bằng thép dụng cụ
• Thay đầu khoan nhanh chóng, có thể thay trực tiếp trên máy.
• Dùng cho gia công vật liệu thép và Inox
• Dung sai lỗ tương đương với dao solid carbide.
• Có đường nước làm mát trong
New
Mũi khoan Dream Drills General
• Đường kính từ D1-D20 mm
• Vật liệu dao hợp kim
• Là dao khoan thông dụng cho vật liệu thép độ cứng từ 30-50 HRc
• Có đường nước làm mát trong.
New
Mũi khoan Dream Drills Inox
• Đường kính từ D1-D20 mm
• Vật liệu dao hợp kim
• Là dao khoan thông dụng cho vật liệu Inox
• Có đường nước làm mát trong.
