Dụng cụ cắt Taegutec

Dao phay mặt ChaseSpeed
Dao phay mặt ChaseSpeed
chasespeed_logo
ChaseSpeed_p
Ceramic cutter “CH” system with ceramic dimple insert

» The exceptionally strong and unique clamping system provides security and reliability
    when clamping the dimple ceramic insert
» The advanced ceramic grade in combination with the clamping mechanism will deliver
    consistent performance and extended tool life
» The new AS20 grade has been specifically developed to machine a wide range of exotic alloys
    including inconel, waspaloy and rene
» AS20 performs at high speeds similar to those of whisker ceramics but offers a low cost
    solution with no compromise in performance




Dao phay mặt ChaseOcto
Dao phay mặt ChaseOcto

chaseocto_logo

ChaseOcto_p

» For economical eight-edged milling with no compromises
   - ChaseOcto has a proven track record
» An extensive range of inserts covers every conceivable milling application
   (EMR, -MR, -EM, -M, -EML, -ML, -Round and AL)
» High-shear positive inserts ensure less vibration and reduce power consumption
» Round inserts for die and mould industry can also fit the ChaseOcto line
» The super high positive ground and polished inserts are available for aluminum milling applications

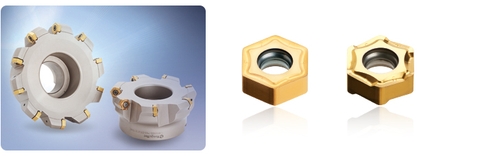

Dao phay mặt Hexa2Mill
Dao phay mặt Hexa2Mill
Zmillplus_logo
The optimum solution for cast iron and steel machining

» Economical 12 cutting edge insert with simple screw and wedge clamping
» Two types of screw-clamping cutters are available for steels and cast iron- 45 degrees for normal applications and
   15 degrees for high feed applications
» The angled approach of the screw-clamping system improves rigidity and clamping for fine pitch cutters
» Another super fine pitch 45 degrees wedge clamping cutter is available for cast iron milling with the same inserts used in
   screw-clamping cutters
» Increased insert thickness (6.35 mm) for a more robust insert designed for higher feed rates
Z-Millplus
Dao phay mặt ChaseQuad
Dao phay mặt ChaseQuad

chasequad_45_logo

ChaseQuad_p

» Wide range of tools for counter boring, spot facing, drill milling, plunge milling and end milling.
   ChaseQuad line also comes in extended flute end mills for the die and mold industry.
» Five sizes of inserts cover the entire range of operations
» SPMG inserts are available with chipbreakers and sharp edge geometries for drilling
» SPMT inserts with a strong cutting edge are used for general milling and roughing applications


Dao phay mặt Chase2Quad Dao phay mặt Chase2Quad
Dao phay mặt Chase2Quad
chase2quad_45_logo
Chase2Quad_8D 45 Line
For heavy machining

» Eight cutting edges per insert for economical machining
» Maximum depth of cut 8.8mm with 45°entering angle
» Diverse cutter types for various applications

Chase2Quad_8D 90 Line
Finish mill combination type
High speed machining of cast iron

» The combination of CBN and ceramic produces high-speed machining
    that leads to high productivity
» Ceramic inserts should be used with the fixed pockets and the CBN inserts on the adjustable pockets
» When applying the ceramic insert, please use a torque-adjustable wrench
   (torque less than 3N recommended)
» CBN inserts can be reground
Dao phay rãnh TopSlot Dao phay rãnh TopSlot
Dao phay rãnh TopSlot
topslot_logo
Slot mill line with ZNHT & SLOT insert
topslot_image1
» Smooth and light cutting from positive chip former
» Robust insert design with four corner cutting edges (2 right / 2 left corners)
» Precision ground inserts for high accuracy

● Animation Video View (ZNHT)
● Animation Video View (SLOT)
● Machining Video View (ZNHT)
● Machining Video View (SLOT)
● High Speed Camera Video View (ZNHT)


topslot_image3
Slot line with ZNHU insert
Economical double sided insert
topslot_image2
» Standard slot width 10-26mm (fixed and adjustable type)
» Double sided durable insert with high positive rake angle for smooth cutting action
» Robust insert design with four corner cutting edges (2 right / 2 left corners)
» Simple, strong & stable adjustment mechanism with innovative design with fewer components

● Animation Video View
● Machining Video View
● High Speed Camera Video View


topslot_image4

New slotting line with 3-edge mill grooving inserts


» Three cutting edges insert for economy: one cutting edge breaks, two remain
» Two cutter types - General type width of cut: 1.2-4.0 mm
                              - “B” type width of cut: 4.01-6.0 mm
» Cutter designed with a bottom relief for shallow face machining

● Machining Video View
